Zalman GPU Heatpipe
The Zalman Heatpipe (ZM80C-HP) and the ATI 9800 (non-pro).  And we all know JJMAN is a bot!!Removal of the original HS and screaming banshee fan by first removing the little pins in the two fasteners, then popping off the HS. Luckily, the HS was just thermal compounded on, not glued on. Cleaning off the old thermal paste off the original HS so i can put it away in my parts bin, and also off of the GPU. I just used a papertowel and rubbing alcohol. Application of extra Artic Silver 5 on the GPU as the GPU is a bit recessed from the surrounding frame. It did come w/ some thermal paste, but I used Arctic Silver 5.

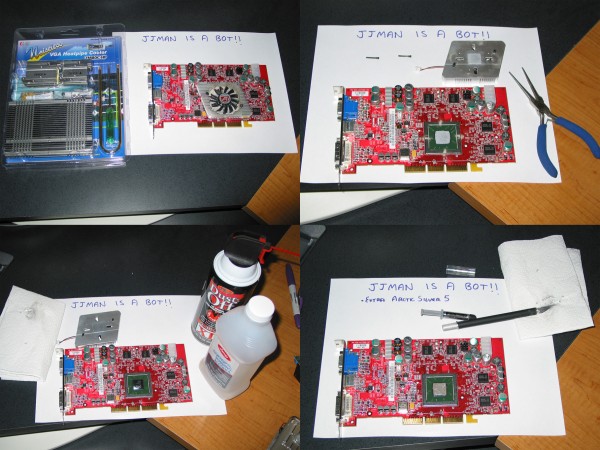

The Zalman Heatpipe (ZM80C-HP) and the ATI 9800 (non-pro). And we all know JJMAN is a bot!!

Removal of the original HS and screaming banshee fan by first removing the little pins in the two fasteners, then popping off the HS. Luckily, the HS was just thermal compounded on, not glued on.

Cleaning off the old thermal paste off the original HS so i can put it away in my parts bin, and also off of the GPU. I just used a papertowel and rubbing alcohol.

Application of extra Artic Silver 5 on the GPU as the GPU is a bit recessed from the surrounding frame. It did come w/ some thermal paste, but I used Arctic Silver 5.
